Tethered Relay System
AF-80X-200M20T

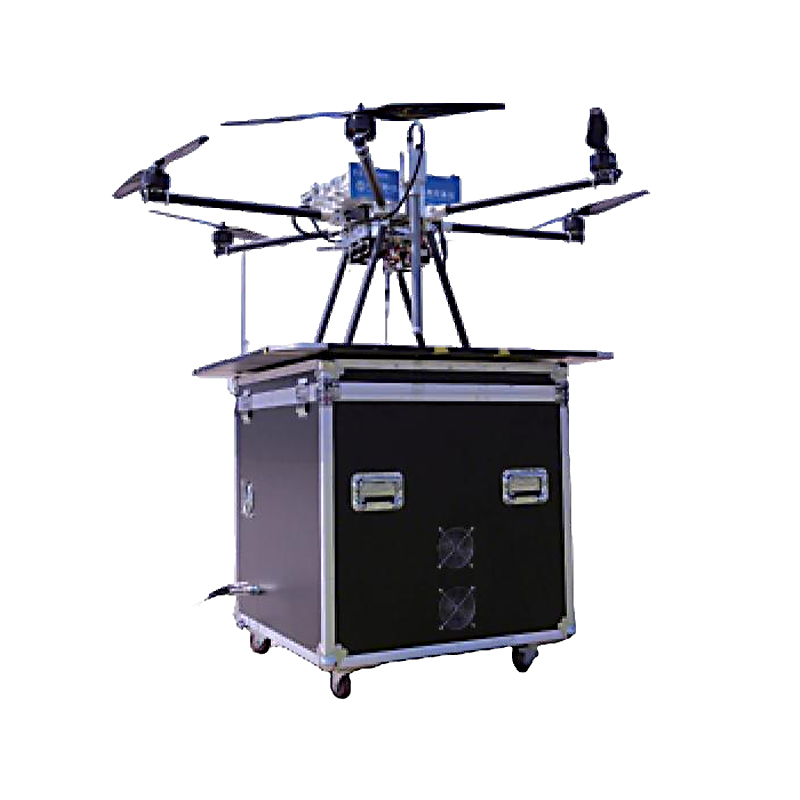

200m 20kg Tethered UAV Platform
1 x UAV (30kg payload drone)
1 x G15 Tethered Box
WF-12KW Airborne Module
Relay and autonomous network system to be provided by the client
Product Introduction:

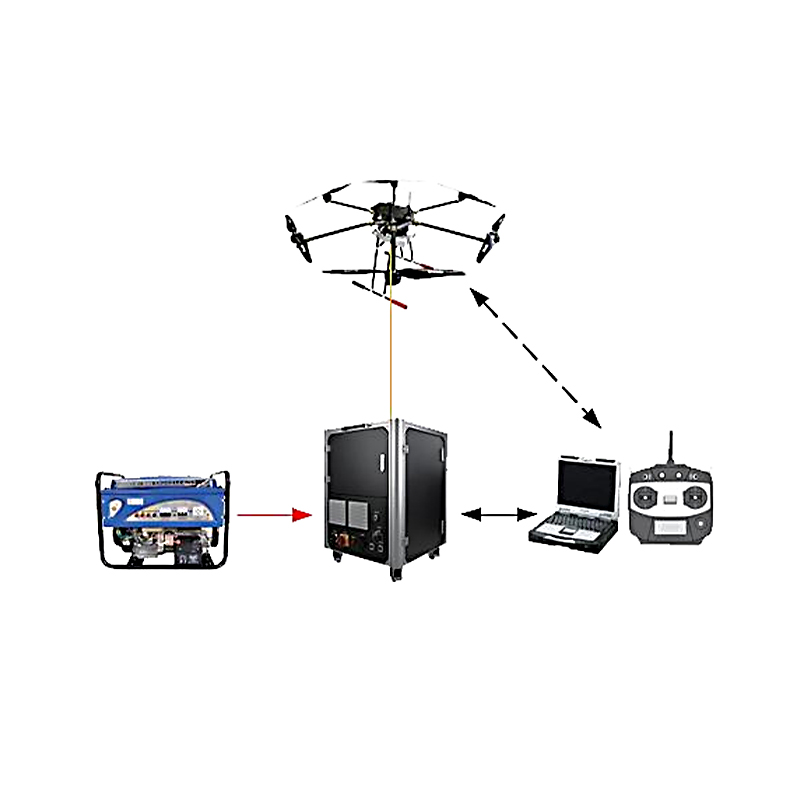

The Tethered UAV Relay Platfom System AF-80X-200M20T consists of a UAV (Unmanned Aerial Vehicle),a tethered powersupply box,and a tetheredairborne module.The tethered UAV relies on continuous power supplyfrom the ground-basedtetheredpowersupplyboxtocompletelong-termfight operations.It transmits the dataof the payload carried by the UAV back to the groundthrough optical fibers.This UAV is equipped with a dual-RTK(Real-Time Kinematic)function,has excellent wind resistance andoutstanding fight capabilities.It can better ensure the flight safety of the UAV,enabling it to perfectly complete long-tem flightrelay transmission tasks.
Application Scenarios:
It can carry 5G base stations of China Mobile,China Unicom,China Telecom,military short-wave radios,self-organizingnetwork radios,public security TeL,civilian WeiDe relay and other relay communication devices.It can also lift the traditionalwalkie -talkies of rescue teams into the air,meeting scenarios such as larger -scale public network or local area networknetworking,or expanding node communicationapplications.
